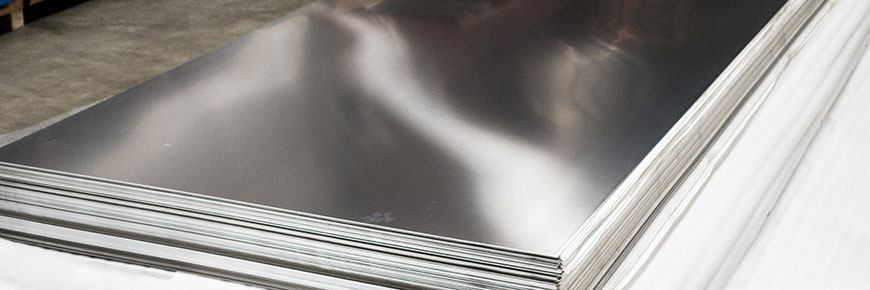

Duplex Steel S31803 / S32205 Sheet & Plate

  • Home
  • Duplex Steel S31803 / S32205 Sheet & Plate

What is Duplex Steel S31803 / S32205 Sheet & Plate ?

One of the best qualities of Duplex Steel S31803 S32205 Sheets and Plates is its high strength and great resistance to corrosion, because of which it is extensively used in many industrial applications. Basically, this alloy combines ferritic and austenitic stainless steel properties that come up with very impressively tough and durable phases. This has led many reputable enterprises to claim the best quality of duplex steel on offer, but little can match the excellence of Chhajed Steel Limited. Chhajed Steel and Alloys Ltd. is deemed one of the distinguished manufacturers, suppliers, stockists, and exporters of Duplex Steel Products, which are unequivocally of unsurpassed quality across the globe.

Duplex Steel S31803 / S32205 Sheet & Plate Manufacturers, Duplex Steel S31803 / S32205 Sheet & Plate Suppliers, Duplex Steel S31803 / S32205 Sheet & Plate Stockists, Duplex Steel S31803 / S32205 Sheet & Plate Exporters

Duplex Steel S31803 / S32205 Sheet & Plate Manufacturers In India, Duplex Steel S31803 / S32205 Sheet & Plate Suppliers In India, Duplex Steel S31803 / S32205 Sheet & Plate Stockists In India, Duplex Steel S31803 / S32205 Sheet & Plate Exporters In India

About the product:

Duplex steel takes its name from this particular combination of phases because it allots superior hardness and corrosion resistance. The physical toughness of an austenitic microstructure within the steel further enhances its capability. In general, it has higher strength and toughness than ferritic stainless steel, and designing it for special purposes allows it to perform better than austenitic stainless steel in many uses.

The significantly improved corrosion resistance of duplex stainless steel makes it very effective against cracking and other deteriorations that are rather common for ferritic grades. This, along with its magnetic nature, helps distinguish duplex steel from other stainless steel grades.

Alloy Designation

Duplex 2205, extensively used in the industry, possesses excellent corrosion resistance and is profoundly strong. Its classification as "2205" is due to an inclusion in the chemical composition of 22% chromium and 5% nickel. These enabling elements bring out its robust performance, thus making it very useful in industrial applications in harsh environments.

Manufacturing and Testing

Chhajed Steel Limited is involved in producing numerous extensive ranges of high-quality duplex steel sheets and plates. All our products are manufactured according to extremely close industry standards and supplied with test certificates in accordance with EN 10204/3.1b. Further, testing, comprising radiographic reports, raw material certificates, and third-party inspection reports, is done so total quality and accordance with the requirements of the industry are honored. As one of the manufacturers whose reputation precedes theirs as suppliers, stockists, and exporters, Chhajed Steel Limited is prominent in maintaining the capability committed to deliver all products with the highest standards of quality and performance in Duplex Steel S31803 S32205.

Standard Specification

Specification ASTM A240 / ASME SA240
Length 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Width 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Thickness Ranging from 0.3mm to 20mm
Hardness As per ASME A & NACE MR 175
Finish Hot rolled plate (HR), Cold rolled sheet (CR)

Duplex Steel S31803 / S32205 Sheet & Plate Manufacturers in Mumbai, Duplex Steel S31803 / S32205 Sheet & Plate Suppliers in Mumbai, Duplex Steel S31803 / S32205 Sheet & Plate Stockists in Mumbai, Duplex Steel S31803 / S32205 Sheet & Plate Exporters in Mumbai

Duplex Steel S31803 Sheet & Plates Equivalent Grades :

STANDARD WERKSTOFF NR. UNS
Duplex Steel 1.4462 S31803 / S32205

Other Types :

S32205 Duplex Steel Sheet & Plate Manufacturers Duplex Steel S31803 Plates Stockholder
Duplex Steel S31803 Plates Dealer in India UNS S31803 Sheets Distributor in Mumbai
High Quality Duplex Steel S31803 Sheets Industrial Duplex Steel S32205 Sheet & Plate
Duplex Steel S31803 Heavy Duty Sheet & Plate Duplex 2205 Sheet & Plate Stockists
Duplex Steel S32205 Sheet & Plates Trader in India Duplex Steel S31803 HR Sheet & Plates
ASTM A240 Duplex Steel S32205 CR Sheet & Plate Duplex Steel 2205 Hot Rolled Sheet & Plate
Duplex Steel S32205 Chequered Sheet & Plate Supplier Duplex Steel S32205 Sheet & Plate Exporter in India

Chemical Composition of Duplex Steel S31803 / S32205 Sheet & Plate

Grade C Mn Si P S Cr Mo Ni N Fe
Duplex Steel S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22 – 23 3 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
Duplex Steel S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21 – 23 2.50 - 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Mechanical Properties of Duplex Steel S31803 / S32205 Sheet & Plates

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.8 g/cm 3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %

People Searched For

duplex steel s32205 sheets stockholder in mumbai, duplex steel s31803 ba no-8 sheet & plate, duplex steel s31803 2d plates, sa240 plate exporter in india, astm a240 sheet manufacturers in mumbai, a240 duplex steel s32205 sheet stockists in india, duplex 2205 plate prices, astm a240 sheet & plates in india, a240 duplex steel s32205 plate stockholder in india, duplex steel s31803 plate properties, astm a240 plates in mumbai, duplex s32205 sheet specifications, astm a240 sheet suppliers in india, duplex steel 2205 plates, duplex steel 2205 plate equivalent grade, astm a240 duplex s31803 plate stockists in mumbai, a240 duplex steel s31803 plate exporters in mumbai, plastic coated plates, a240 duplex steel sheet & plate traders in mumbai, astm a240 plate supplier in mumbai, duplex steel s31803 plates price list, duplex s31803 plates in india, s32205 duplex steel sheet thickness, satin plates, a240 s31803 plates dealer in mumbai, duplex steel s31803 plate chemical composition, duplex s31803 2b sheet & plates, duplex steel s31803 sheet & plates equivalent, astm a240 plates manufacturer in india.

Application Industries

  • Construction
  • Bridges
  • Petrochemical Industry
  • Ship Building
  • Engineering
  • General Structural Purposes
  • Offshore and Onshore Services
